Description

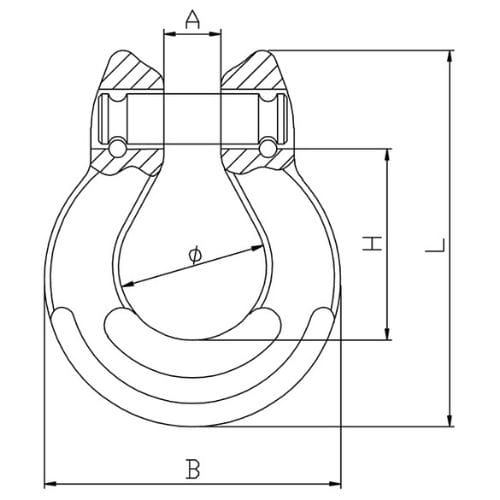

| Product Code | Size (mm) | Weight (kg) | WLL (T) | A | B | Ø | H | L |
|---|---|---|---|---|---|---|---|---|
| XN002-06 | 6 | 0.12 | 1.12T | 8.0 | 41.0 | 20.5 | 25.0 | 52.0 |
| XN002-07/8 | 7/8 | 0.22 | 2.0T | 10.0 | 52.0 | 23.5 | 35.0 | 68.5 |
| XN002-10 | 10 | 0.36 | 3.15T | 12.0 | 62.0 | 31.5 | 40.5 | 81.0 |
| XN002-13 | 13 | 0.71 | 5.3T | 15.0 | 81.0 | 41.0 | 54.0 | 108 |
| XN002-16 | 16 | 1.30 | 8.0T | 19.0 | 99.0 | 49.5 | 64.0 | 126 |
| XN002-20 | 18/20 | 2.20 | 12.5T | 23.0 | 118 | 58.0 | 75.6 | 152 |
