Duke Twist Eye Choker Hook

The Twist Eye Choker Hook is designed for creating secure choker connections in lifting and rigging applications. Its unique twist eye design allows the hook to easily fit around a load and create a tightened, secure loop as tension is applied, making it ideal for lifting cylindrical or irregularly shaped objects.

Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested – 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
EN1677-1
Safety Factor 4:1

Enquire about Duke Twist Eye Choker Hook

Description

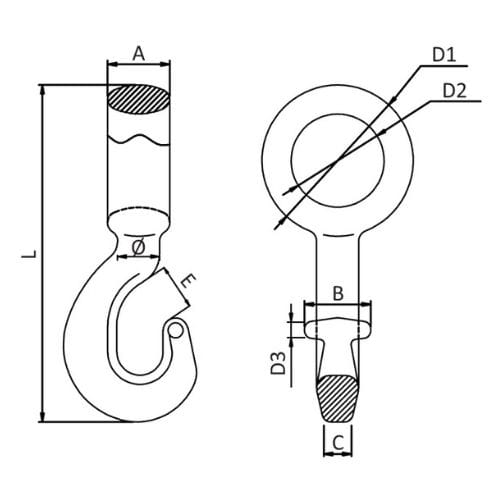

Product Code	Size (mm)	Weight (kg)	WLL (T)	A	B	C	Ø	D1	D2	D3	E	L
XN026-07/8	07/8	0.36	2.0T	19.0	28.0	6.50	17.0	52.0	30.5	7.50	16.0	123
XN026-10	10	0.72	3.2T	26.0	40.0	17.5	20.0	68.0	39.0	8.00	20.0	157
XN026-13	13	1.40	5.4T	34.0	43.0	21.0	25.0	85.0	52.0	9.50	27.0	195
XN026-16	16	3.17	8.2T	51.0	45.5	31.0	30.0	108	64.0	10.5	30.0	246
XN026-18	18	3.80	10.0T	49.5	53.0	22.0	33.5	121	75.0	12.0	37.0	268
XN026-20/22	20/22	8.95	15.3T	70.0	80.0	14.0	52.0	146	84.0	14.0	47.0	367
