Duke Eye Shortening Grab Hook

An Eye Shortening Grab Hook is a specialized hook designed for adjusting chain length in lifting and rigging applications. Its unique narrow throat securely grips the chain without the need for a separate connector, allowing for precise shortening or positioning of the chain during use. The eye-shaped loop at the top ensures easy attachment to slings or lifting equipment.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • EN1677-1
  • Safety Factor 4:1

Description

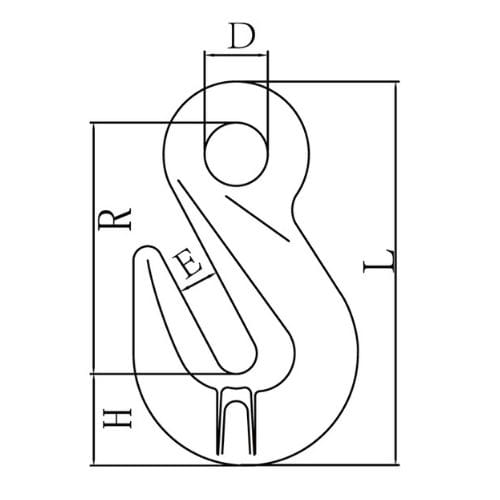

Product Code Size (mm) Weight (kg) WLL (T) E D H R L
XN085-06 6 0.21 1.12T 8.00 14.5 18.0 46.8 73.0
XN085-07/8 7/8 0.35 2.0T 10.8 18.0 21.5 52.5 93.0
XN085-10 10 0.65 3.15T 13.0 20.5 29.0 79.8 122
XN085-13 13 1.34 5.3T 16.5 26.0 42.8 99.7 158
XN085-16 16 2.10 8.0T 19.0 30.5 44.5 106.5 169
XN085-20 18/20 4.00 12.8T 24.0 37.5 56.0 140.2 219
XN085-22 22 6.36 16.0T 28.0 44.0 68.0 165.0 259
XN085-26 26 10.6 21.2T 30.0 49.0 77.0 197.0 306
XN085-32 32 19.4 31.5T 38.0 57.0 95.0 226.0 361
