Duke Eye Sling Hook With Latch

The Eye Sling Hook is designed for secure attachment to slings, chains, or ropes. It features an eye-shaped loop at the top for easy connection to lifting equipment, providing a strong and reliable link between the hook and the load. The hook’s design allows for smooth and efficient lifting, making it ideal for a variety of industrial, construction, and material handling applications.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • EN1677-2 / WLL + 25%, Higher Grade Material.
  • Safety Factor 4:1

Description

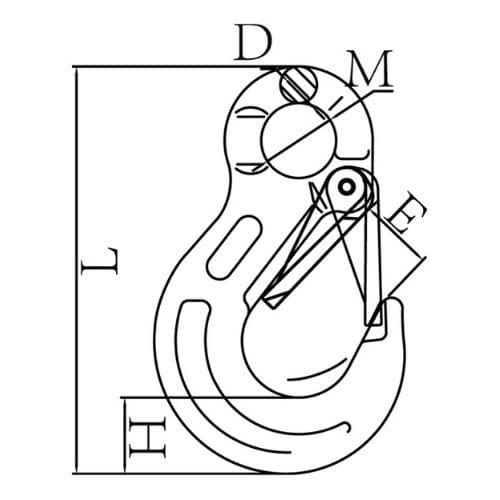

Product Code Size (mm) Weight (kg) WLL (T) D E H M L
XN1003-06 6 0.32 1.4T 10.0 18.5 21.0 20.5 111.0
XN1003-08 8 0.60 2.5T 11.0 25.0 27.5 25.0 137.5
XN1003-10 10 1.20 4.0T 16.0 28.0 33.0 34.0 171.5
XN1003-13 13 2.20 6.7T 19.0 38.0 43.5 43.0 219.0
XN1003-16 16 3.50 10.0T 24.5 46.0 50.0 50.0 260.0
XN1003-20 20 6.20 16.0T 27.0 52.0 56.0 55.0 298.0
XN1003-22 22 11.5 19.0T 29.0 66.0 62.0 60.0 330.0
XN1003-26 26 12.2 26.5T 35.0 73.0 75.0 70.0 376.0
XN1003-32 32 17.5 39.3T 39.0 87.0 89.0 81.5 459.0
