Description

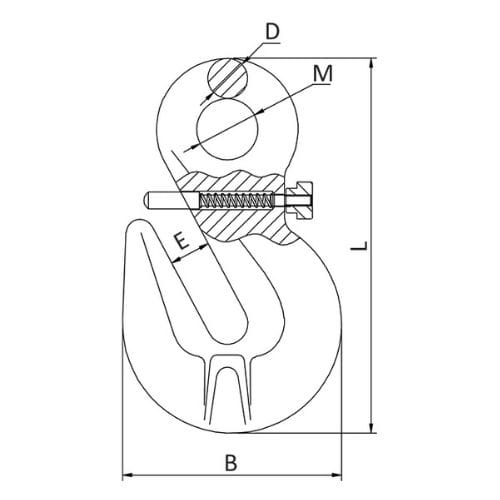

| Product Code | Size (mm) | Weight (kg) | WLL (T) | M | B | D | E | L |
|---|---|---|---|---|---|---|---|---|
| XN317-07/8 | 7/8 | 0.29 | 2.0T | 17.0 | 50.0 | 9.5 | 11.0 | 88.5 |
| XN317-10 | 10 | 0.75 | 3.15T | 20.0 | 71.0 | 13.0 | 13.0 | 121.5 |
| XN317-13 | 13 | 1.62 | 5.3T | 26.0 | 96.0 | 15.5 | 16.5 | 158 |
Duke Eye Shortening Grab Hook & Pin
An Eye Shortening Grab Hook is commonly used in rigging and material handling applications to shorten the length of a chain or secure a load. The hook features an eye at one end, which allows for easy connection to a chain or other rigging components. The “shortening” aspect refers to the hook’s ability to help reduce the effective length of the chain, providing a more secure attachment point for lifting or securing loads. The hook is designed with a grab feature that securely captures and holds onto the chain or load, while the pin is inserted to lock the hook in place, preventing accidental disengagement.
- Fatigue Rated x 1.5 WLL for 20,000 cycles
- Proof Tested – 2.5 times Working Load Limit
- 100% Magnaflux Crack Detected
- Super Alloy Steel
- EN1677-1
- Safety Factor 4:1
