Duke Clevis Shortening Grab Hook

The Clevis Grab Hook is a versatile component designed for securely gripping and shortening chains in lifting, rigging, and load-securing applications. Its clevis design allows easy attachment to chains without the need for additional connectors, and the hook’s narrow throat ensures a firm hold on the chain links.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • All Load Pins are 100% individually inspected and tested
  • EN1677-1 / WLL + 25%, Higher Grade Material
  • Safety Factor 4:1

Description

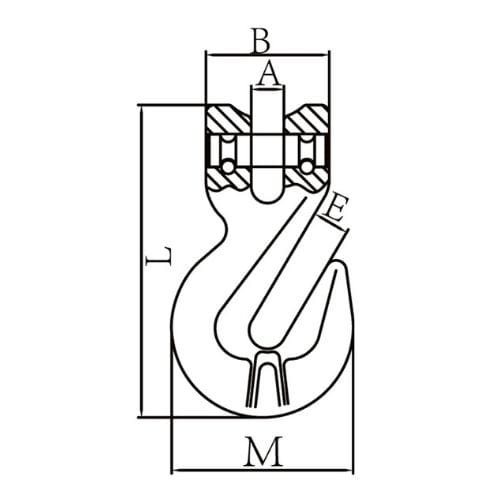

Product Code Size (mm) Weight (kg) WLL (T) A B E M L
XN1009-06 6 0.22 1.4T 7.50 32.0 8.0 43.5 75.0
XN1009-08 8 0.34 2.5T 9.50 36.0 10.8 53.0 91.5
XN1009-10 10 0.82 4.0T 12.0 46.0 13.5 72.0 126.0
XN1009-13 13 1.75 6.7T 15.0 59.0 16.5 96.0 163.5
XN1009-16 16 2.88 10.0T 17.5 70.0 19.2 112.5 183.5
XN1009-20 20 4.84 16.0T 24.0 85.0 24.0 143.0 224.0
XN1009-22 22 8.30 19.0T 27.0 100 27.0 160.5 262.0
