Duke Clevis Reeving Link

A Clevis Reeving Link is a type of connecting link that is designed to be threaded or reeved through chain or other rigging components. Its clevis design allows for easy attachment.

Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested – 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
All Load Pins are 100% individually inspected and tested
EN1677-1
Safety Factor 4:1

Enquire about Duke Clevis Reeving Link

Description

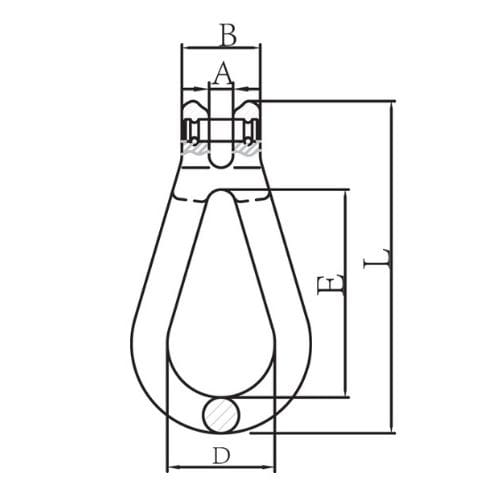

Product Code	Size (mm)	Weight (kg)	WLL (T)	A	B	D	E	L
XN270-07/8	7/8	0.53	2.0T	10.0	32.8	45.0	87.0	139
XN270-10	10	0.74	3.15T	12.0	42.0	60.0	108	174
XN270-13	13	1.76	5.3T	16.5	55.5	66.5	137.5	228
XN270-16	16	2.80	8.0T	19.0	68.0	72.0	165	264
