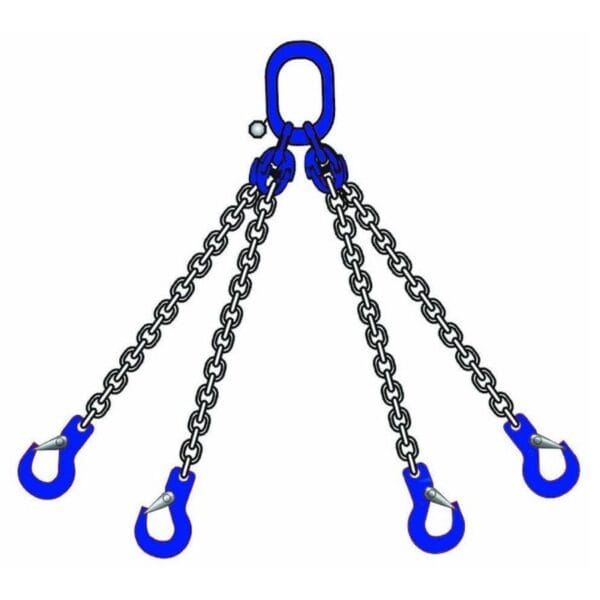

A 4 Leg Chain Sling is a lifting sling with four separate chain legs, offering maximum stability and weight distribution for lifting heavy or irregularly shaped loads. Each leg works together to evenly distribute the load across all four points. The sling has hooks or other connectors at the ends of each leg, making it easy to securely attach to the load and lifting equipment. The 4-leg configuration provides superior balance and is ideal for handling large, heavy, or complex loads safely and efficiently.Description
All general-purpose slings should be rated using the uniform load method.
Safety factor of 4 on all grade 10 chain slings.
| Chain Size (mm) | Single Leg Chain Sling WLL (T) | 2 Leg Chain Sling WLL (T) | 3 & 4 Leg Chain Sling WLL (T) | Endless Choke Sling WLL (T) | ||
|---|---|---|---|---|---|---|
| 0-45° Safety Factor 1.4 | 45-60° Safety Factor 1.0 | 0-45° Safety Factor 2.1 | 45-60° Safety Factor 1.5 | |||
| 6 | 1.4T | 2.0T | 1.4T | 2.9T | 2.1T | 2.2T |
| 8 | 2.5T | 3.5T | 2.5T | 5.3T | 3.8T | 4.0T |
| 10 | 4.0T | 5.6T | 4.0T | 8.4T | 6.0T | 6.4T |
| 13 | 6.7T | 9.5T | 6.7T | 14.0T | 10.0T | 10.6T |
| 16 | 10.0T | 14.0T | 10.0T | 21.0T | 15.0T | 16.0T |
| 19 | 14.0T | 20.0T | 14.0T | 30.0T | 21.0T | 22.4T |
| 20 | 16.0T | 22.4T | 16.0T | 33.6T | 24.0T | 25.6T |
| 22 | 19.0T | 26.5T | 19.0T | 40.0T | 28.0T | 30.4T |
| 26 | 26.5T | 37.0T | 26.5T | 56.0T | 40.0T | 43.0T |
| 32 | 39.3T | 55.0T | 39.3T | 83.0T | 59.0T | 63.0T |
