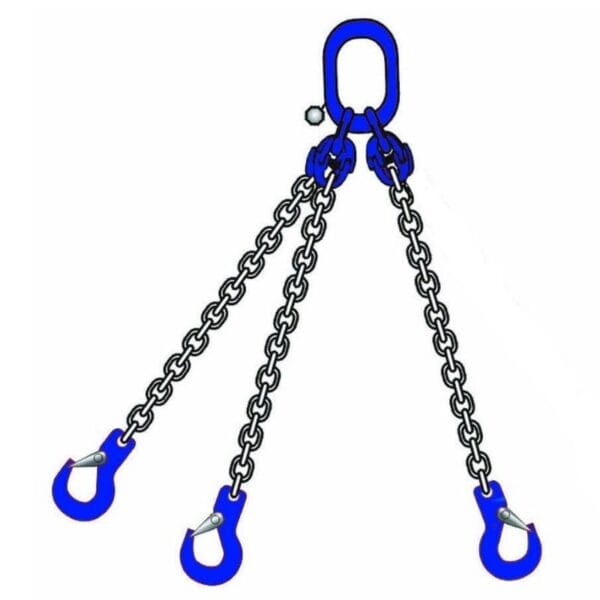

A 3-leg chain Sling is a lifting sling with three separate chain legs, providing even greater stability and support for lifting heavy or awkwardly shaped loads. The sling has hooks or other connectors at the ends of each leg, making it easy to attach to the load and lifting equipment. This setup allows for more versatile lifting options, ensuring safety and balance when handling large, bulky, or uneven loads.Description
All general-purpose slings should be rated by the uniform load method.
Safety factor of 4 on all grade 10 chain slings.
| Chain Size (mm) | Single Leg Chain Sling WLL (T) | 2 Leg Chain Sling WLL (T) | 3 & 4 Leg Chain Sling WLL (T) | Endless Choke Sling WLL (T) | ||
|---|---|---|---|---|---|---|
| 0-45° Safety Factor 1.4 | 45-60° Safety Factor 1.0 | 0-45° Safety Factor 2.1 | 45-60° Safety Factor 1.5 | |||
| 6 | 1.4T | 2.0T | 1.4T | 2.9T | 2.1T | 2.2T |
| 8 | 2.5T | 3.5T | 2.5T | 5.3T | 3.8T | 4.0T |
| 10 | 4.0T | 5.6T | 4.0T | 8.4T | 6.0T | 6.4T |
| 13 | 6.7T | 9.5T | 6.7T | 14.0T | 10.0T | 10.6T |
| 16 | 10.0T | 14.0T | 10.0T | 21.0T | 15.0T | 16.0T |
| 19 | 14.0T | 20.0T | 14.0T | 30.0T | 21.0T | 22.4T |
| 20 | 16.0T | 22.4T | 16.0T | 33.6T | 24.0T | 25.6T |
| 22 | 19.0T | 26.5T | 19.0T | 40.0T | 28.0T | 30.4T |
| 26 | 26.5T | 37.0T | 26.5T | 56.0T | 40.0T | 43.0T |
| 32 | 39.3T | 55.0T | 39.3T | 83.0T | 59.0T | 63.0T |
