Wire Rope Eye Hoist Hook

A U.S. alloy wire rope eye hoist hook is a forged, heat-treated alloy steel lifting hook designed to attach to the eye of a wire rope sling. It meets lifting standards, is rated for overhead lifting, and typically includes a safety latch, marked working load limit, and high-visibility finish for rigging applications.

Complete with lock nut fitted latch
Safety Factor: 5:1
Available in WLL 0.75T up to 30T
Spare latch kits available
Product Code XN130

Enquire about Wire Rope Eye Hoist Hook

Description

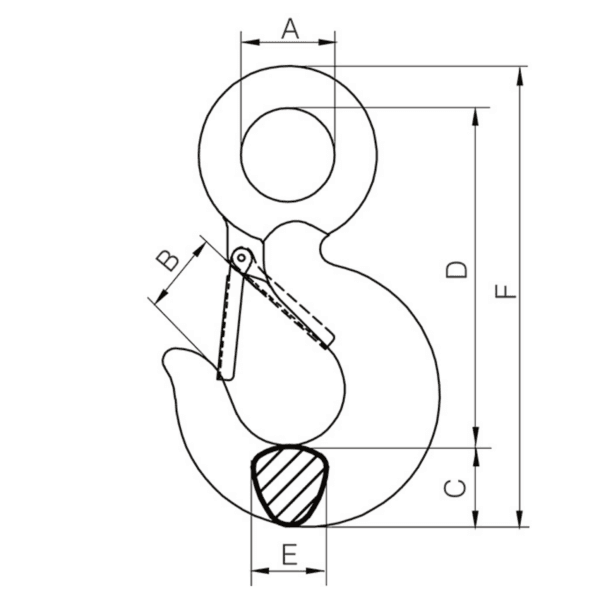

Product Code	Weight (kg)	WLL (T)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
XN130-01	0.21	0.75T	16.5	19.0	17.0	72.0	16.0	97.0
XN130-02	0.28	1.0T	19.0	22.0	19.0	82.0	16.0	110.0
XN130-03	0.40	1.5T	23.0	23.0	21.0	93.5	17.5	125.0
XN130-04	0.65	2.0T	28.0	24.0	26.0	103.0	21.0	140.5
XN130-05	0.81	3.0T	31.0	27.5	28.0	119.0	23.0	162.0
XN130-06	1.75	5.0T	39.0	33.0	37.0	146.0	33.0	201.0
XN130-07	3.77	7.0T	51.0	44.0	46.5	186.5	38.0	256.0
XN130-08	6.80	11.0T	62.0	55.0	57.0	231.5	46.0	317.0
XN130-09	9.96	15.0T	73.0	57.0	66.0	260.0	55.0	360.0
XN130-10	15.37	22.0T	89.0	83.0	79.6	318.0	68.5	434.0
XN130-11	27.2	30.0T	90.0	95.0	91.0	360.0	70.0	495.5
