A Weld-On Pivoting D-Link is a versatile component used in rigging, towing, and material handling applications. To create a reliable and permanent attachment point, it is designed to be welded onto a surface, such as a frame, vehicle, or structure. The pivoting action ensures smooth movement and reduces strain on the equipment, making it ideal for dynamic or rotating lifting tasks.

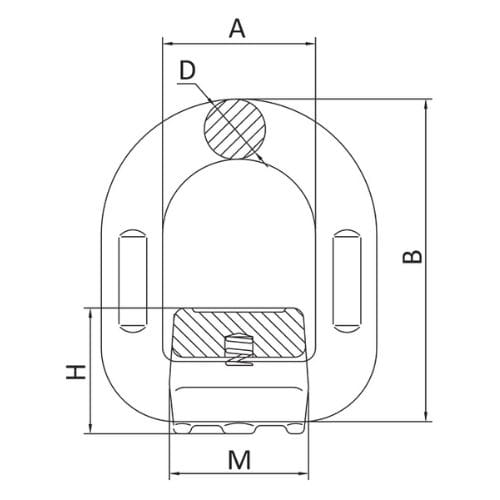

| Product Code | Size (mm) | Weight (kg) | WLL (T) | A | B | D | M | H |
|---|---|---|---|---|---|---|---|---|
| XN344-01T | 1.0T | 0.40 | 1.12T | 41.0 | 78.5 | 13.0 | 37.0 | 35.0 |
| XN344-02T | 2.0T | 0.47 | 2.0T | 42.0 | 88.0 | 14.0 | 40.0 | 37.0 |
| XN344-03T | 3.0T | 0.69 | 3.15T | 45.0 | 94.0 | 17.0 | 43.5 | 40.0 |
| XN344-05T | 5.0T | 1.46 | 5.3T | 55.0 | 118 | 22.0 | 50.0 | 52.0 |
| XN344-08T | 8.0T | 2.50 | 8.0T | 70.0 | 141 | 26.5 | 66.5 | 57.0 |
| XN344-15T | 15.0T | 5.79 | 15.0T | 97.0 | 188 | 34.0 | 90.0 | 77.0 |
