Duke Swivel Self Locking Hook / Roller Bearing

The Swivel Self-Locking Hook is designed for smooth and secure material handling. Featuring a 360-degree swivel mechanism, it provides flexibility by preventing twisting of the load and rigging. The self-locking feature ensures that the hook automatically secures the load, preventing accidental detachment during lifting operations.

Equipped with roller bearings, the hook allows for smoother rotation with reduced friction, enhancing the efficiency and longevity of both the hook and the rigging system.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • EN1677-3
  • Rotates Under Load
  • Safety Factor 4:1

Description

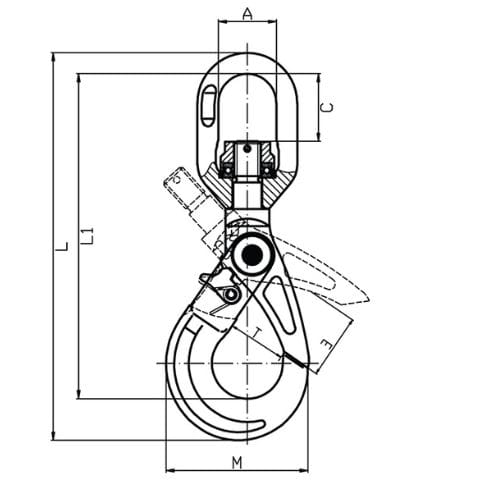

Product Code Size (mm) Weight (kg) WLL (T) A C L1 L T E M
XN042-06 6 0.71 1.12T 32.5 33.8 160 194 28.0 32.0 70.0
XN042-7/8 07/8 1.10 2.0T 36.0 40.0 202 240 35.0 39.0 88.0
XN042-10 10 2.00 3.15T 42.0 48.0 237 283 45.0 48.0 108
XN042-13 13 4.00 5.3T 50.0 58.0 282 343 52.5 65.0 134
XN042-16 16 7.30 8.0T 61.0 60.0 341.5 419 63.3 65.0 168.6
XN042-20 18/20 11.6 12.5T 76.0 75.5 399.5 483 86.0 85.0 186.2
XN042-22 22 16.0 15.0T 97.0 97.0 466 564 76.0 80.0 202
XN042-26 26 21.5 21.2T 123 115 544 661 96.0 125 244
