RUD VRS-F Starpoint -metric

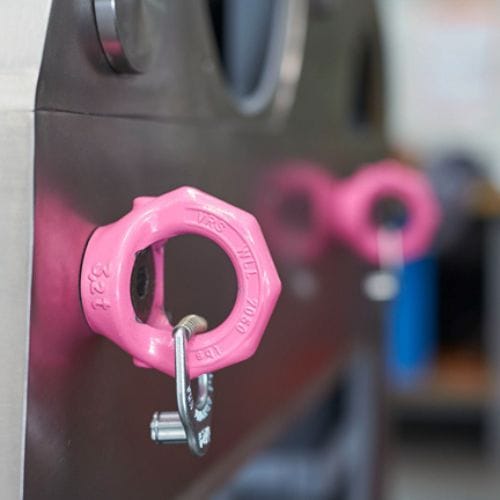

The RUD VRS-F StarPoint is a fixed, high-strength swivel lifting point designed for secure and safe load handling. Unlike traditional eyebolts, it features a 360° rotating lifting ring for optimal load alignment and reduced stress on the lifting component. The VRS-F comes with an easy-fit key for easy assembly & disassembly.

360° adjustable in force direction
Several times higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly available
DGUV Test
4:1 Safety Factor

View Datasheet
OFFICIAL RUD DISTRIBUTOR

Enquire about RUD VRS-F Starpoint -metric

Description

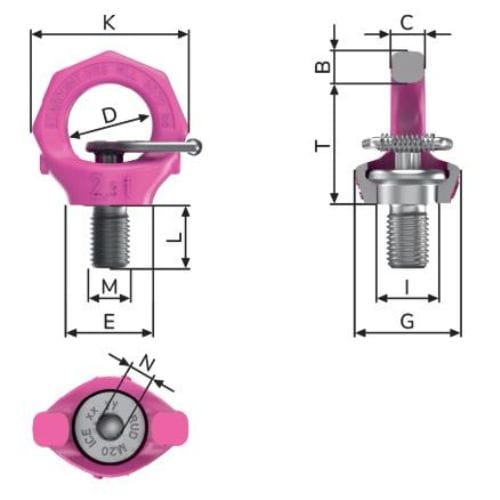

Product Code	M (mm)	Weight (kg)	WLL (kgs)	T (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	I (mm)	K (mm)	L (mm)	N (mm)
RUD/STAR/VRS-F/M6	M6	0.07	100	28	9	7	20	23	28	13.0	37	9	6
RUD/STAR/VRS-F/M8	M8	0.11	300	35	11	9	25	25	30	16.3	47	12	6
RUD/STAR/VRS-F/M10	M10	0.11	400	35	11	9	25	25	30	16.3	47	15	6
RUD/STAR/VRS-F/M12	M12	0.19	750	42	13	10	30	30	34	19.8	56	18	8
RUD/STAR/VRS-F/M14	M14	0.20	750	42	13	10	30	30	34	19.8	56	18	8
RUD/STAR/VRS-F/M16	M16	0.32	1500	49	15	13	35	36	40	23.5	65	24	10
RUD/STAR/VRS-F/M18	M18	0.40	1500	49	15	13	35	36	40	23.5	65	24	10
RUD/STAR/VRS-F/M20	M20	0.54	2300	58	17	16	40	41	50	29.3	76	30	12
RUD/STAR/VRS-F/M22	M22	0.56	2300	58	17	16	40	41	50	29.3	76	30	12
RUD/STAR/VRS-F/M24	M24	0.86	3200	70	20	19	49	51	60	35.0	92	36	14
RUD/STAR/VRS-F/M27	M27	0.94	3200	70	20	19	49	51	60	35.0	92	36	14
RUD/STAR/VRS-F/M30	M30	1.50	4500	87	26	24	60	66	75	44.0	114	45	17
Other sizes available on request
