A collared eyebolt is a heavy-duty lifting point designed for secure and stable load lifting. It features a reinforcing collar at the base, which provides extra strength and support, making it suitable for angled lifts as well as vertical lifting. The collar helps distribute the load more evenly, reducing stress on the bolt and improving safety. The extended threaded shank allows for installation in thicker materials or deep anchoring points, ensuring a secure hold. When using long shank collared eyebolts at a 90-degree angle, the load is significantly reduced. For a 90-degree pull, the load rating is typically reduced to 25% of the eyebolt’s rated vertical load. This is because the load is not aligned with the shank of the bolt, causing bending stresses that can lead to failure.

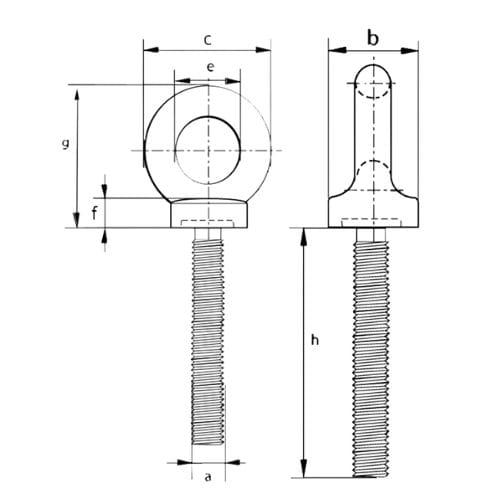

| Product Code | WLL (kgs) | a (mm) | b (mm) | c (mm) | e (mm) | f (mm) | g (mm) | h (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| EBCLS/12 | 400 | 12 | 28 | 41 | 19 | 11 | 45 | 178 | 0.25 |
| EBCLS/16 | 800 | 16 | 36 | 52 | 24 | 14 | 58 | 178 | 0.44 |
| EBCLS/20 | 1600 | 20 | 43 | 62 | 29 | 17 | 69 | 178 | 0.70 |
| EBCLS/24 | 2500 | 24 | 57 | 82 | 38 | 19 | 87 | 178 | 1.50 |
