Jaw & Jaw Turnbuckle

Description

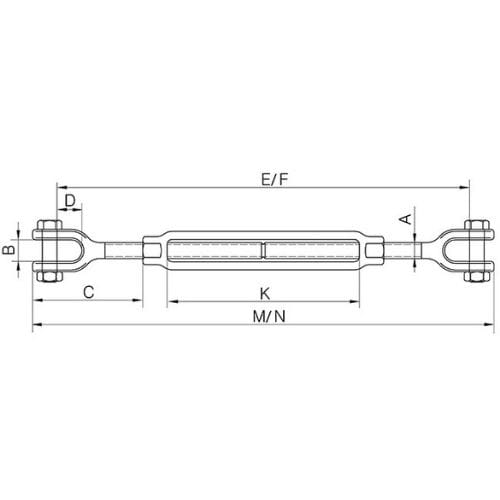

Part Code	Size (Inch)	Weight (kg) Each	WLL (T)	A (inch)	B (inch)	C (inch)	D (inch)	E (inch)	F (inch)	M (inch)	N (inch)	K (inch)
TOB/144/JJ	1/4 x 4	0.16	0.23T	0.25	0.45	1.58	0.62	10.90	6.90	11.90	7.90	4.00
TOB/516/JJ	5/16 x 4 1/2	0.24	0.36T	0.31	0.50	1.98	0.87	12.36	8.36	13.90	9.40	4.50
TOB/386/JJ	3/8 x 6	0.36	0.54T	0.38	0.54	2.21	0.87	16.14	10.14	17.38	11.30	6.00
TOB/126/JJ	1/2 x 6	0.71	1.0T	0.50	0.65	2.75	1.06	18.50	11.50	20.00	13.00	6.00
TOB/129/JJ	1/2 x 9	0.79	1.0T	0.50	0.65	2.75	1.06	24.50	14.50	26.00	19.00	9.00
TOB/1212/JJ	1/2 x 12	1.09	1.0T	0.50	0.65	2.75	1.06	30.50	17.50	32.00	19.00	12.00
TOB/586/JJ	5/8 x 6	1.23	1.6T	0.63	0.79	1.31	1.31	20.05	12.80	22.13	14.88	6.00
TOB/589/JJ	5/8 x 9	1.55	1.6T	0.63	0.79	1.31	1.31	26.05	15.80	28.13	17.88	9.00
TOB/5812/JJ	5/8 x 12	1.77	1.6T	0.63	0.79	1.31	1.31	32.05	18.80	34.13	20.88	12.00
TOB/5818/JJ	5/8 x 18	2.30	1.6T	0.63	0.79	1.31	1.31	38.05	21.80	40.13	23.88	18.00
TOB/346/JJ	3/4 x 6	1.87	2.3T	0.75	0.94	1.50	1.50	21.50	14.00	24.10	16.60	6.00
TOB/349/JJ	3/4 x 9	2.47	2.3T	0.75	0.94	1.50	1.50	27.50	17.00	30.10	19.60	9.00
TOB/3412/JJ	3/4 x 12	2.97	2.3T	0.75	0.94	1.50	1.50	33.50	20.00	36.10	22.60	12.00
TOB/3418/JJ	3/4 x 18	3.64	2.3T	0.75	0.94	1.50	1.50	45.50	26.00	48.10	28.60	18.00
TOB/7812/JJ	7/8 x 12	3.71	3.2T	0.88	1.13	1.75	1.75	35.11	21.36	38.07	24.35	12.00
TOB/7818/JJ	7/8 x 18	4.89	3.2T	0.88	1.13	1.75	1.75	47.11	27.36	50.07	30.32	18.00
TOB/16/JJ	1 x 6	4.62	4.5T	1.00	1.34	2.06	2.06	24.72	16.72	28.06	20.06	6.00
TOB/112/JJ	1 x 12	5.96	4.5T	1.00	1.34	2.06	2.06	36.72	22.72	40.06	26.06	12.00
TOB/118/JJ	1 x 18	6.87	4.5T	1.00	1.34	2.06	2.06	48.72	28.72	52.06	32.06	18.00
* Larger sizes available upon request.
