Eye & Jaw Rigging Screw

Eye and Jaw Rigging Screws are a robust tensioning tool designed for precise adjustment of tension in cables, wires, and rigging systems. Features an eye at one end for connecting with shackles or hooks and a jaw at the other end, secured with a clevis pin and cotter pin for a secure connection.
Commonly used in entertainment, construction, and industrial applications. Its threaded body allows for easy and accurate tension adjustments, making it perfect for stabilizing structures, tightening, or other load-securing tasks.

  • Available in various sizes to meet diverse project needs.
  • MBL equals 5 x WLL
  • Hot Dipped Galvanised



Description

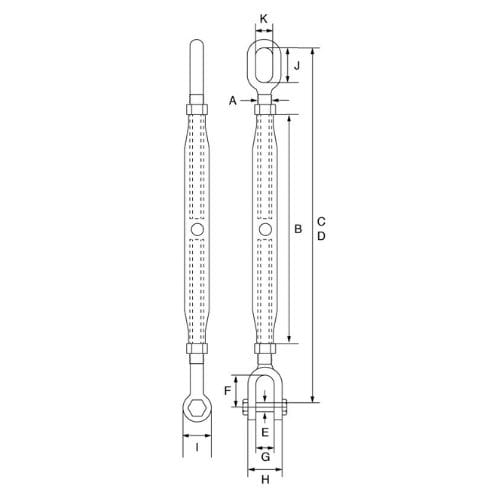

Part Code Working Load Limit (t) A (mm) B (mm) C - Closed (mm) D - Open (mm) E (mm) F (mm) G (mm) H (mm) I (mm) J (mm) K (mm) Weight each (kgs)
VBRGS/M6/EJ 0.20 6 100 170 248 M5 19 7 20 13 13 11 0.13
VBRGS/M8/EJ 0.32 8 108 189 273 M6 25 9 24 14 14 12 0.23
VBRGS/M10/EJ 0.50 10 125 216 306 M8 26 10.5 28 19 19 13 0.38
VBRGS/M12/EJ 0.70 12 195 323 478 M10 32 13 34 22 22 15 0.78
VBRGS/M16/EJ 1.20 16 230 384 569 M12 39 18 42 28 28 20 1.36
VBRGS/M20/EJ 1.50 20 270 455 665 M16 46 20 51 33 33 24 2.33
VBRGS/M22/EJ 2.20 22 295 493 723 M20 55 25 55 38 38 24 3.01
VBRGS/M24/EJ 3.20 24 325 552 802 M22 63 30 70 46 46 28 4.10
* Larger sizes available upon request.
