Duke Eye Foundry Hook With Flat

The Eye Foundry Hook is a heavy-duty lifting tool designed for use in foundries and industrial environments. It features a strong, eye-shaped loop at the top, which allows for easy attachment to cranes, chains, or slings, providing a secure connection for lifting heavy materials, including molten metal, molds, or equipment.

Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested – 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
Safety Factor 4:1

Enquire about Duke Eye Foundry Hook With Flat

Description

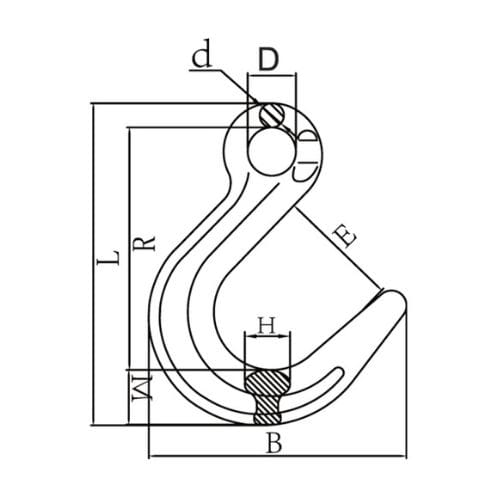

Product Code	Size (mm)	Weight (kg)	WLL (T)	D	L	B	R	E	d	H	M
XN116-07/8	7/8	0.72	2.0T	24.0	158.5	130.0	120.5	62.0	12.0	19.0	26.0
XN116-10	10	1.25	3.2T	31.5	199.0	152.5	153.2	73.0	15.0	25.0	31.0
XB116-13	13	2.32	5.3T	44.0	241.5	186.0	184.0	90.0	19.0	33.0	38.5
XN116-16	16	3.45	8.0T	49.0	279.0	218.0	216.0	105	22.0	37.0	42.0
XN116-18/20	18/20	6.42	12.5T	60.0	330.0	252.0	247.0	114	26.0	46.0	57.0
