Description

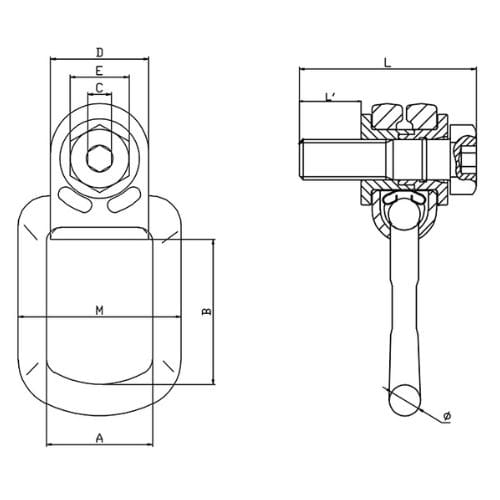

| Product Code | Size (mm) | Weight (kg) | WLL (T) 90º | A | B | C | E | M | L | L' | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XN173-M8 | M8 | 0.36 | 0.3T | 35.0 | 52.5 | 6.0 | 13.0 | 45.0 | 46.0 | 10.4 | 14.0 |
| XN173-M10 | M10 | 0.38 | 0.63T | 35.0 | 52.5 | 6.0 | 17.0 | 45.0 | 52.0 | 16.0 | 14.0 |
| XN173-M12 | M12 | 0.71 | 1.0T | 40.0 | 54.0 | 8.0 | 19.0 | 68.0 | 62.0 | 18.0 | 18.0 |
| XN173-M14 | M14 | 0.72 | 1.2T | 40.0 | 54.0 | 8.0 | 19.0 | 68.0 | 66.0 | 21.0 | 18.0 |
| XN173-M16 | M16 | 0.74 | 1.5T | 40.0 | 54.0 | 8.0 | 19.0 | 68.0 | 70.0 | 24.0 | 18.0 |
| XN173-M18 | M18 | 1.16 | 2.0T | 54.0 | 80.0 | 12.0 | 30.0 | 83.0 | 83.0 | 26.0 | 16.0 |
| XN173-M20 | M20 | 1.19 | 2.5T | 54.0 | 80.0 | 12.0 | 30.0 | 83.0 | 88.0 | 30.0 | 16.0 |
| XN173-M24 | M24 | 1.36 | 4.0T | 54.0 | 94.0 | 14.0 | 36.0 | 83.0 | 95.0 | 35.0 | 18.0 |
| XN173-M27 | M27 | 4.18 | 4.0T | 73.0 | 106.0 | 17.0 | 41.0 | 120.0 | 120.0 | 38.0 | 27.0 |
| XN173-M30 | M30 | 4.40 | 5.0T | 73.0 | 106.0 | 17.0 | 41.0 | 120.0 | 132.0 | 48.0 | 27.0 |
| XN173-M36 | M36 | 4.65 | 8.0T | 73.0 | 106.0 | 17.0 | 41.0 | 120.0 | 142.0 | 54.0 | 27.0 |
| XN173-M42 | M42 | 12.4 | 15.0T | 104.0 | 155.0 | 24.0 | 65.0 | 176.0 | 179.0 | 63.0 | 40.0 |
Lifting Points:
| Size (mm) | 1 Point (T) 0º | 1 Point (T) 90º | 2 Points (T) 0º | 2 Points (T) 90º | 2 Points (T) 0-45º | 2 Points (T) 45-60º | 3/4 Points (T) 0-45º | 3/4 Points (T) 45-60º | 3/4 Points Unsym (T) |
|---|---|---|---|---|---|---|---|---|---|
| M8 | 0.3T | 0.3T | 0.6T | 0.6T | 0.42T | 0.3T | 0.63T | 0.46T | 0.3T |
| M10 | 0.63T | 0.63T | 1.26T | 1.26T | 0.88T | 0.63T | 1.32T | 0.95T | 0.63T |
| M12 | 1.0T | 1.0T | 2.0T | 2.0T | 1.4T | 1.0T | 2.1T | 1.5T | 1.0T |
| M14 | 1.2T | 1.2T | 2.4T | 2.4T | 1.68T | 1.2T | 2.52T | 1.8T | 1.2T |
| M16 | 1.5T | 1.5T | 3.0T | 3.0T | 2.1T | 1.5T | 3.15T | 2.25T | 1.5T |
| M18 | 2.0T | 2.0T | 4.0T | 4.0T | 2.8T | 2.0T | 4.2T | 3.0T | 2.0T |
| M20 | 2.5T | 2.5T | 5.0T | 5.0T | 3.5T | 2.5T | 5.25T | 3.75T | 2.5T |
| M24 | 4.0T | 4.0T | 8.0T | 8.0T | 5.6T | 4.0T | 8.4T | 6.0T | 4.0T |
| M27 | 4.0T | 4.0T | 8.0T | 8.0T | 5.6T | 4.0T | 8.4T | 6.0T | 4.0T |
| M30 | 5.0T | 5.0T | 10.0T | 10.0T | 7.0T | 5.0T | 10.5T | 7.5T | 5.0T |
| M36 | 8.0T | 8.0T | 16.0T | 16.0T | 11.2T | 8.0T | 16.8T | 12.0T | 8.0T |
| M42 | 15.0T | 15.0T | 30.0T | 30.0T | 21.0T | 15.0T | 31.5T | 22.5T | 15.0T |
