A High Tensile Lifting Eyebolt is used to provide a secure attachment point for lifting heavy loads in rigging, construction, and industrial applications. Its threaded shaft allows for easy installation into a load-bearing structure, making it ideal for heavy-duty lifting and hoisting tasks.Description

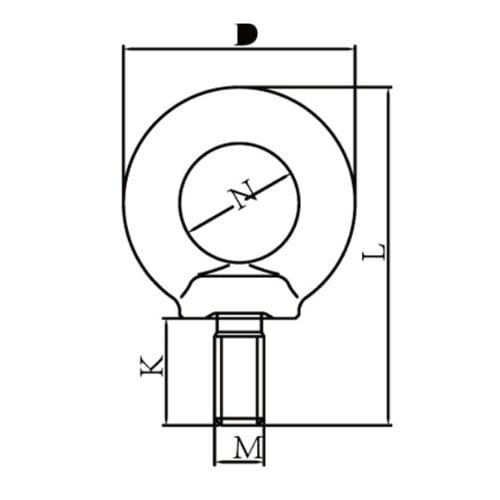

| Product Code | Size (mm) | Weight (kg) | WLL (T) 0º | WLL (T) 90º | D | K | N | L | C |
|---|---|---|---|---|---|---|---|---|---|
| XN054-M06 | M6X13 | 0.03 | 0.4T | 0.15T | 28.0 | 13.0 | 16.0 | 42.0 | 17.0 |
| XN054-M08 | M8X15 | 0.06 | 0.8T | 0.4T | 36.0 | 15.0 | 20.0 | 51.0 | 20.0 |
| XN054-M10 | M10X18 | 0.11 | 1.0T | 0.4T | 45.0 | 18.0 | 25.0 | 63.0 | 25.0 |
| XN054-M12 | M12X22 | 0.18 | 2.0T | 0.75T | 54.0 | 22.0 | 30.0 | 75.0 | 30.0 |
| XN054-M16 | M16X28 | 0.30 | 4.0T | 1.5T | 63.0 | 28.0 | 35.0 | 90.0 | 35.0 |
| XN054-M20 | M20X30 | 0.45 | 6.0T | 2.3T | 72.0 | 30.0 | 40.0 | 101 | 40.0 |
| XN054-M24 | M24X38 | 0.95 | 8.0T | 3.2T | 90.0 | 38.0 | 50.0 | 128 | 50.0 |
| XN054-M30 | M30X45 | 1.76 | 12.0T | 4.5T | 108 | 45.0 | 60.0 | 154 | 65.0 |
| XN054-M36 | M36X55 | 2.65 | 16.0T | 7.0T | 126 | 55.0 | 70.0 | 183 | 75.0 |
| XN054-M42 | M42X65 | 4.06 | 24.0T | 9.0T | 144 | 65.0 | 80.0 | 212 | 85.0 |
| XN054-M48 | M48X70 | 6.38 | 32.0T | 12.0T | 166 | 70.0 | 90.0 | 238 | 100 |
Lifting Points:
| Size (mm) | 1 Point (T) 0º | 1 Point (T) 90º | 2 Points (T) 0º | 2 Points (T) 90º | 2 Points (T) 0-45º | 2 Points (T) 45-60º | 3/4 Points (T) 0-45º | 3/4 Points (T) 45-60º | 3/4 Points Unsym (T) |
|---|---|---|---|---|---|---|---|---|---|
| M6 | 0.4T | 0.15T | 0.8T | 0.3T | 0.21T | 0.15T | 0.32T | 0.23T | 0.15T |
| M8 | 0.8T | 0.32T | 1.60T | 0.6T | 0.44T | 0.32T | 0.67T | 0.48T | 0.32T |
| M10 | 1.0T | 0.40T | 2.0T | 0.8T | 0.56T | 0.40T | 0.84T | 0.60T | 0.40T |
| M12 | 2.0T | 0.75T | 4.0T | 1.5T | 1.05T | 0.75T | 1.58T | 1.13T | 0.75T |
| M16 | 4.0T | 1.50T | 8.0T | 3.0T | 2.10T | 1.50T | 3.15T | 2.25T | 1.50T |
| M20 | 6.0T | 2.30T | 12.0T | 4.6T | 3.22T | 2.30T | 4.83T | 3.45T | 2.30T |
| M24 | 8.0T | 3.20T | 16.0T | 6.4T | 4.48T | 3.20T | 6.72T | 4.80T | 3.20T |
| M30 | 12.0T | 4.50T | 24.0T | 9.0T | 6.30T | 4.50T | 9.50T | 6.80T | 4.50T |
| M36 | 16.0T | 7.0T | 32.0T | 14.0T | 9.80T | 7.0T | 14.7T | 10.5T | 7.0T |
| M42 | 24.0T | 9.0T | 48.0T | 18.0T | 12.6T | 9.0T | 18.9T | 13.5T | 9.0T |
| M48 | 32.0T | 12.0T | 64.0T | 24.0T | 16.8T | 12.0T | 25.2T | 18.0T | 12.0T |
