Duke Clevis Sling Hook With Latch

The Clevis Sling Hook is a reliable and durable lifting tool designed for secure attachment to chains or slings in rigging and material handling tasks. Its clevis connection ensures a strong link without requiring additional connectors.

Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested – 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
All Load Pins are 100% individually inspected and tested
EN1677-2 / WLL + 25%, Higher Grade Material.
Safety Factor 4:1

Enquire about Duke Clevis Sling Hook With Latch

Description

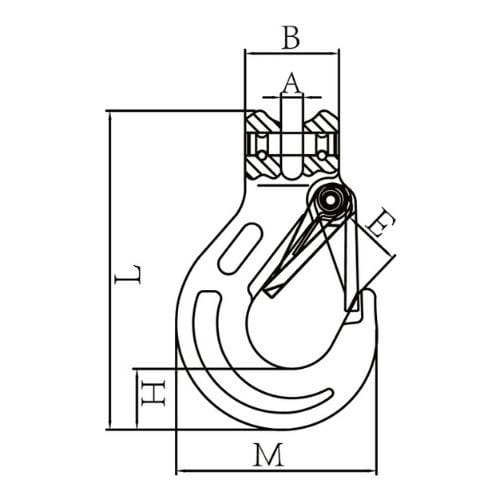

Product Code	Size (mm)	Weight (kg)	WLL (T)	A	B	E	H	M	L
XN1004-06	06	0.33	1.4T	7.50	32.0	18.5	21.0	68.5	109.0
XN1004-08	9	0.70	2.5T	9.50	37.0	25.0	27.5	88.0	134.0
XN1004-10	10	1.30	4.0T	12.0	48.0	28.0	33.5	105.5	161.5
XN1004-13	13	2.30	6.7T	15.0	59.0	38.0	42.0	134.0	203.0
XN1004-16	16	3.60	10.0T	17.5	70.0	44.0	50.0	160.5	248.0
XN1004-20	20	7.30	16.0T	25.0	85.0	52.0	56.0	190.5	297.0
XN1004-22	22	12.1	19.0T	27.0	100	66.0	62.0	214.5	326.0
