Description

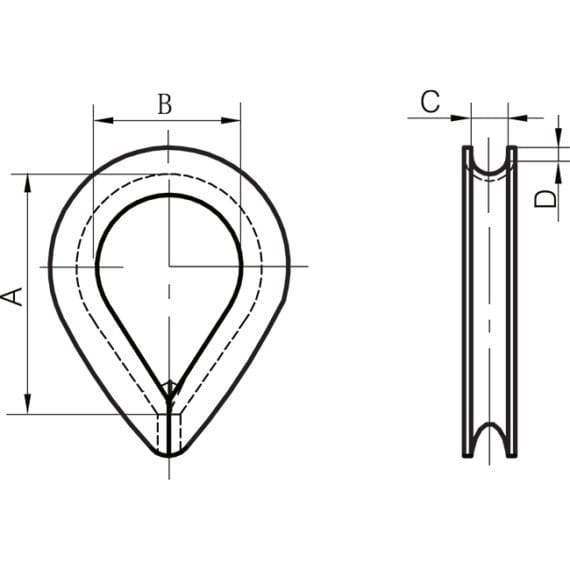

| Product Code | Size (mm) | Weight (kg per 100) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|
| TMD/3 | 3 | 1 | 19 | 12 | 3 | 1.6 |
| TMD/4 | 4 | 1 | 21 | 13 | 4 | 1.6 |
| TMD/5 | 5 | 1 | 23 | 14 | 5 | 1.8 |
| TMD/6 | 6 | 2 | 25 | 16 | 6 | 2.4 |
| TMD/7 | 7 | 3 | 28 | 18 | 7 | 2.4 |
| TMD/8 | 8 | 3 | 32 | 20 | 8 | 2.8 |
| TMD/10 | 10 | 4 | 38 | 24 | 10 | 3.1 |
| TMD/12 | 12 | 8 | 45 | 28 | 12 | 3.3 |
