Duke Clevis Self Locking Hook

The Clevis Self-Locking Hook is a heavy-duty lifting accessory designed for maximum safety and reliability. Its self-locking mechanism automatically closes the hook when a load is applied, preventing accidental detachment during lifting or rigging operations. The clevis connection allows for secure attachment to chains or slings without additional connectors.

EN1677-1
Safety Factor 4:1

Enquire about Duke Clevis Self Locking Hook

Description

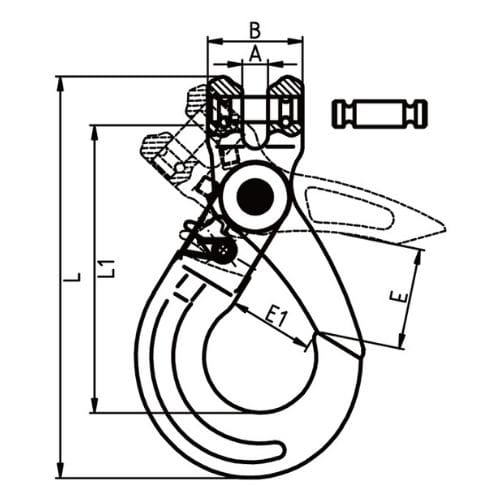

Product Code	Size (mm)	Weight (kg)	WLL (T)	A	B	E	E1	L1	L
XN739-06	6	0.44	1.12T	8.00	32.0	32.0	28.0	99.0	134
XN739-07/8	07/8	0.8	2.0T	9.50	38.5	39.0	35.8	119.3	161.8
XN739-10	10	1.38	3.15T	12.5	46.0	48.0	45.0	142	195
XN739-13	13	2.81	5.3T	15.0	59.0	65.0	52.5	179	249
XN739-16	16	6.00	8.0T	18.5	77.0	65.0	63.3	224.8	310
XN739-20	18/20	7.25	12.5T	24.0	77.0	85.0	86.0	238	335
XN739-22	22	12.8	15.0T	25.0	97.6	80.0	76.0	277	392
XN739-26	26	21.8	21.2T	30	118	97.5	96.0	312	449
XN739-32	32	49.6	31.5T	35.0	150	99.0	135	416	589.6
