Duke Clevis Grab Hook

The Clevis Grab Hook is a versatile component designed for securely gripping and shortening chains in lifting, rigging, and load-securing applications. Its clevis design allows easy attachment to chains without the need for additional connectors, and the hook’s narrow throat ensures a firm hold on the chain links.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • All Load Pins are 100% individually inspected and tested
  • EN1677-1.
  • Safety Factor 4:1

Description

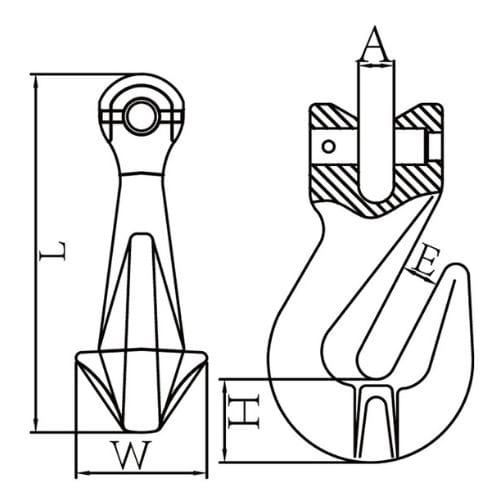

Product Code Size (mm) Weight (kg) WLL (T) E A H W L
XN086-06 6 0.25 1.12T 8.00 7.50 18.0 21.5 77.0
XN086-07/8 7/8 0.32 2.0T 10.5 9.50 21.0 33.5 89.0
XN086-10 10 0.73 3.15T 13.0 12.5 29.0 46.0 126
XN086-13 13 1.60 5.3T 16.5 15.0 42.5 57.5 163.5
XN083-16 16 2.80 8.0T 19.0 18.5 45.5 74.0 183.5
XN083-20 18/20 5.00 12.5T 24.0 23.0 56.0 74.0 219
XN083-22 22 6.30 15.0T 27.0 27.0 68.5 90.0 254
XN083-26 26 14.5 21.2T 30.0 30.0 77.0 102 309

Additional information

Weight0.55 kg
