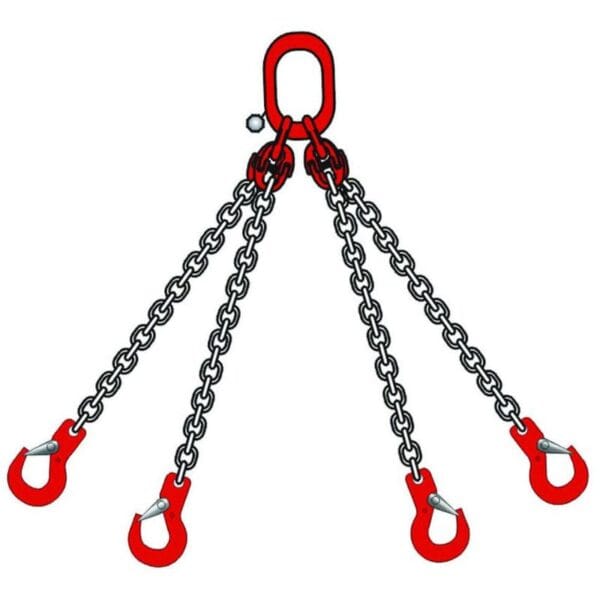

4 Leg Chain Sling

🔍

A 4 Leg Chain Sling is a lifting sling with four separate chain legs, offering maximum stability and weight distribution for lifting heavy or irregularly shaped loads. Each leg works together to evenly distribute the load across all four points. The sling has hooks or other connectors at the ends of each leg, making it easy to securely attach to the load and lifting equipment. The 4-leg configuration provides superior balance and is ideal for handling large, heavy, or complex loads safely and efficiently.

Grade 80 Lifting Chain is manufactured from alloy steel and complies fully with EN818-2.

Enquire about 4 Leg Chain Sling

Description

Uniform Load Method of Rating BS EN 818-4
All general-purpose slings should be rated using the uniform load method.

Chain Size (mm)	Single Leg Chain Sling WLL (T)	2 Leg Chain Sling WLL (T)		3 & 4 Leg Chain Sling WLL (T)		Endless Choke Sling WLL (T)
		0-45° Safety Factor 1.4	45-60° Safety Factor 1.0	0-45° Safety Factor 2.1	45-60° Safety Factor 1.5
7	1.5T	2.12T	1.5T	3.15T	2.24T	2.5T
8	2.0T	2.8T	2.0T	4.25T	3.0T	3.15T
10	3.15T	4.25T	3.15T	6.7T	4.75T	5.0T
13	5.3T	7.5T	5.3T	11.2T	8.0T	8.5T
16	8.0T	11.2T	8.0T	17.0T	11.8T	12.5T
19	11.2T	16.0T	11.2T	23.6T	17.0T	18.0T
20	12.5T	17.0T	12.5T	26.5T	19.0T	20.0T
22	15.0T	21.2T	15.0T	31.5T	22.4T	23.6T
26	21.2T	30.0T	21.2T	45.0T	31.5T	33.5T
32	31.5T	45.0T	31.5T	67.0T	47.5T	50.0T
