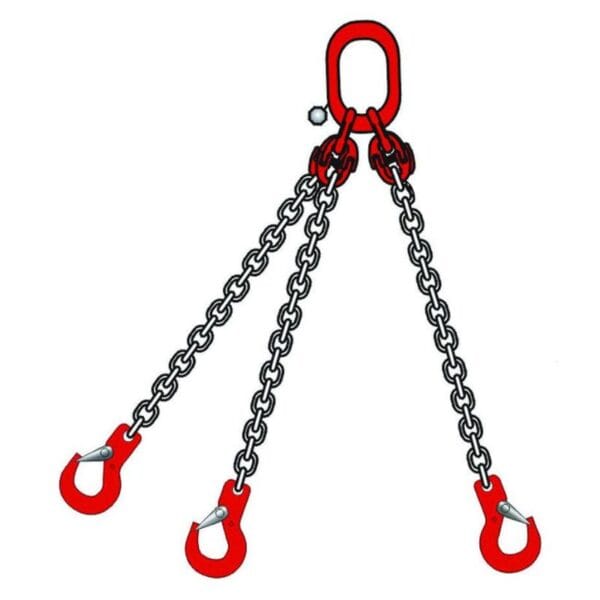

3 Leg Chain Sling

🔍

A 3-leg chain Sling is a lifting sling with three separate chain legs, providing even greater stability and support for lifting heavy or awkwardly shaped loads. The sling has hooks or other connectors at the ends of each leg, making it easy to attach to the load and lifting equipment. This setup allows for more versatile lifting options, ensuring safety and balance when handling large, bulky, or uneven loads.

Grade 80 Lifting Chain is manufactured from alloy steel and complies fully with EN818-2.

Enquire about 3 Leg Chain Sling

Description

Uniform Load Method of Rating BS EN 818-4
All general-purpose slings should be rated using the uniform load method.

Chain Size (mm)	Single Leg Chain Sling WLL (T)	2 Leg Chain Sling WLL (T)		3 & 4 Leg Chain Sling WLL (T)		Endless Choke Sling WLL (T)
		0-45° Safety Factor 1.4	45-60° Safety Factor 1.0	0-45° Safety Factor 2.1	45-60° Safety Factor 1.5
7	1.5T	2.12T	1.5T	3.15T	2.24T	2.5T
8	2.0T	2.8T	2.0T	4.25T	3.0T	3.15T
10	3.15T	4.25T	3.15T	6.7T	4.75T	5.0T
13	5.3T	7.5T	5.3T	11.2T	8.0T	8.5T
16	8.0T	11.2T	8.0T	17.0T	11.8T	12.5T
19	11.2T	16.0T	11.2T	23.6T	17.0T	18.0T
20	12.5T	17.0T	12.5T	26.5T	19.0T	20.0T
22	15.0T	21.2T	15.0T	31.5T	22.4T	23.6T
26	21.2T	30.0T	21.2T	45.0T	31.5T	33.5T
32	31.5T	45.0T	31.5T	67.0T	47.5T	50.0T
