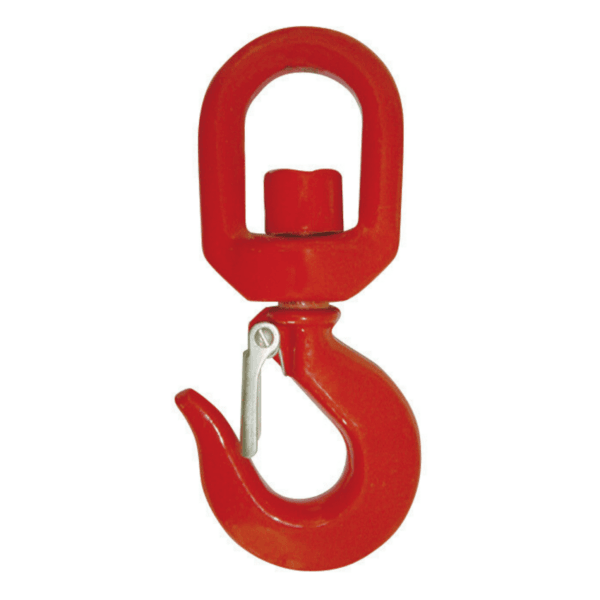

Wire Rope Swivel Eye Hoist Hook

A U.S. alloy swivel eye hoist hook is a forged, heat-treated alloy steel lifting hook with a rotating eye that allows the hook to swivel under load. It meets lifting standards, is rated for overhead lifting, and typically features a safety latch, marked working load limit, and a durable, high-visibility finish for rigging and crane applications.

Complete with lock nut fitted latch
Safety Factor: 5:1
Available in WLL 0.75T up to 30T
Spare latch kits available
Product Code XN132

Enquire about Wire Rope Swivel Eye Hoist Hook

Description

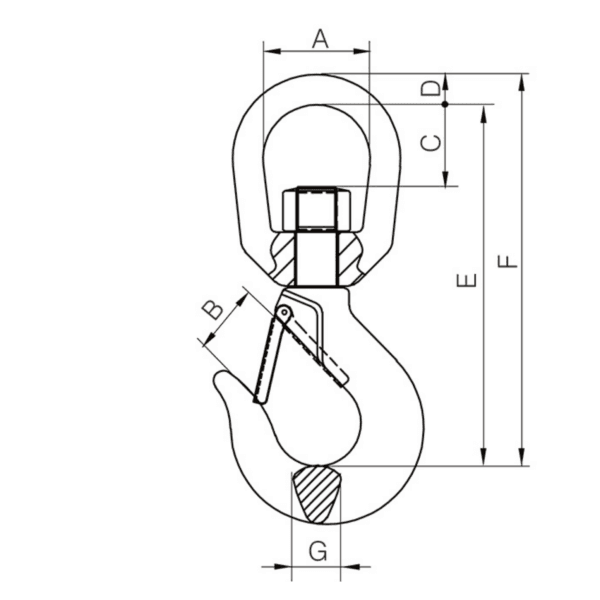

Product Code	Weight (kg)	WLL (T)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
XN132-01	0.30	0.75T	31.5	17.0	22.5	9.0	110.0	137.0	15.0
XN132-02	0.34	1.0T	32.0	17.0	22.5	9.0	108.3	137.0	16.0
XN132-03	0.64	1.5T	37.5	22.5	29.5	12.0	133.5	163.5	17.5
XN132-04	1.02	2.0T	42.5	26.0	33.0	15.8	150.5	192.0	21.0
XN132-05	1.24	3.0T	42.5	26.0	33.0	15.8	163.0	209.0	23.0
XN132-06	2.25	5.0T	48.0	32.5	39.0	18.0	191.0	246.0	31.0
XN132-07	4.00	7.0T	64.0	43.0	53.0	21.5	243.5	313.0	34.0
XN132-08	7.09	11.0T	68.0	49.5	53.0	26.0	277.0	364.0	41.5
XN132-09	12.77	15.0T	79.0	54.5	62.0	32.0	332.0	431.0	55.7
XN132-10	24.5	22.0T	105.0	87.0	108.0	40.0	427.0	543.0	70.0
XN132-11	34.5	30.0T	105.0	97.5	96.0	40.0	465.3	596.0	76.2
