Duke Swivel Self Locking Hook / Brass Bushing

The Swivel Self-Locking Hook is designed for secure and flexible material handling. It features a swivel mechanism that allows 360-degree rotation, preventing twisting of the load or rigging. The self-locking design automatically secures the hook when a load is applied, ensuring safety by preventing accidental detachment.

Incorporating a brass bushing, this hook reduces friction and ensures smooth rotation, extending the lifespan of both the hook and the rigging system.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • EN1677-3
  • Safety Factor 4:1

Description

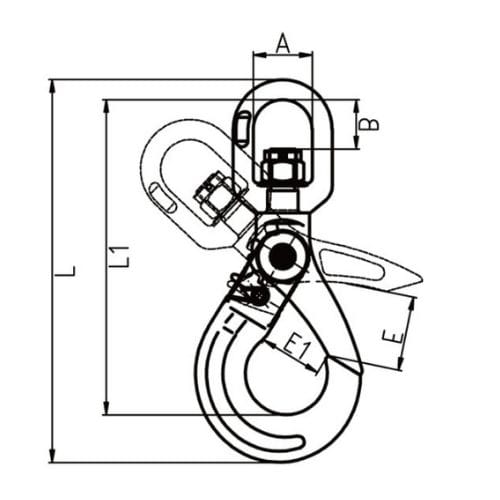

Product Code Size (mm) Weight (kg) WLL (T) A B E E1 L1 L
XN755-06 6 0.71 1.12T 32.5 24.0 30.0 28.0 152.5 184
XN755-07/8 07/8 1.15 2.0T 36.0 29.5 28.9 35.8 189 228
XN755-10 10 1.86 3.15T 42.0 35.0 48.0 48.0 224 270
XN755-13 13 3.51 5.3T 50.0 41.0 54.0 52.5 267 324
XN755-16 16 7.33 8.0T 61.0 56.8 47.5 63.3 355.6 406
XN755-20 18/20 10.3 12.5T 72.0 63.0 52.0 86.0 378 460
XN755-22 22 17.5 15.0T 97.0 98.0 60.0 76.0 466 564
XN755-26 26 23.0 21.2T 123 115 97.3 96.0 544 661
XN755-32 32 81.0 31.5T 140 146 99.0 135 679 829
