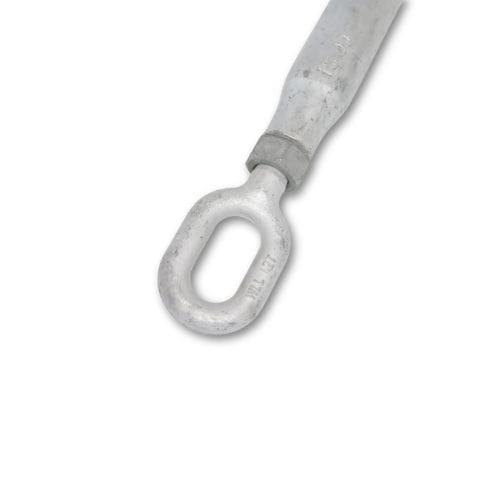

Eye & Eye Rigging Screw

Eye and Eye Rigging Screws are a robust tensioning tool designed for precise adjustment of tension in cables, wires, and rigging systems. Features an eye at each end for connecting with shackles or hooks.
Commonly used in entertainment, construction, and industrial applications. Its threaded body allows for easy and accurate tension adjustments, making it perfect for stabilizing structures, tightening, or other load-securing tasks.

  • Available in various sizes to meet diverse project needs.
  • MBL equals 5 x WLL
  • Hot Dipped Galvanised



Description

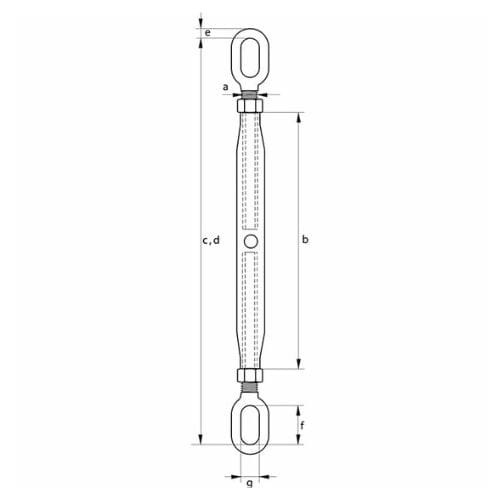

Part Code Working Load Limit (t) A (mm) B (mm) C - Closed (mm) D - Open (mm) E (mm) F (mm) G (mm) H (mm) Weight each (kgs)
VBRGS/M6/EE 0.20 6 100 160 240 5.5 11 11 6 0.12
VBRGS/M8/EE 0.32 8 108 175 255 6.0 12 12 8 0.19
VBRGS/M10/EE 0.50 10 125 205 300 8.5 13 13 8 0.34
VBRGS/M12/EE 0.70 12 195 320 480 11.0 30 15 10 0.77
VBRGS/M16/EE 1.20 16 230 380 555 12.0 40 20 11 1.31
VBRGS/M20/EE 1.50 20 270 455 660 16.0 50 24 12 2.36
VBRGS/M22/EE 2.20 22 295 495 720 16.0 50 24 12 2.94
VBRGS/M24/EE 3.20 24 325 540 790 19.0 56 28 12 3.86
* Larger sizes available upon request.
