Duke Swivel Self Locking Hook

The Swivel Latch Hook is designed for secure and efficient material handling. It features a swivel mechanism that allows the hook to rotate 360 degrees, providing flexibility and preventing twisting or tangling of the lifting sling or chain. The hook also includes a latch, which helps secure the load and prevents accidental detachment during lifting operations.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • Brass Bushings
  • All Load Pins are 100% individually inspected and tested
  • EN1677-3 / WLL + 25%, Higher Grade Material.
  • Safety Factor 4:1

Description

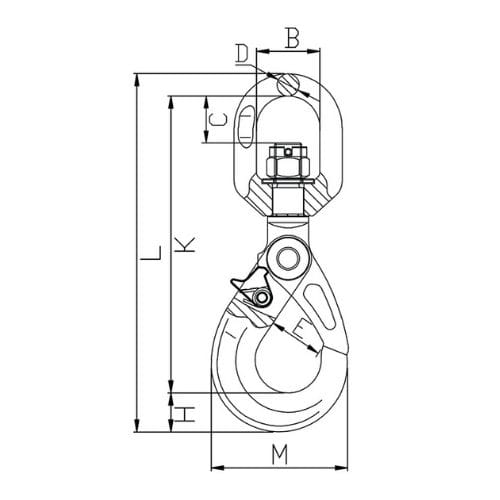

Product Code Size (mm) Weight (kg) WLL (T) B C D E H M K L
XN1007-06 6 0.60 1.4T 32.5 23.0 11.5 28.0 20.0 70.0 152.0 184.0
XN1007-08 8 1.10 2.5T 36.0 28.0 13.0 35.9 26.0 90.0 190.0 229.0
XN1007-10 10 2.0 4.0T 42.0 35.0 15.5 45.0 30.0 109.0 225.0 269.0
XN1007-13 13 4.0 6.7T 50.0 41.0 17.0 53.5 40.5 138.5 273.0 330.0
XN1007-16 16 6.8 10.0T 61.0 58.0 21.5 62.0 50.5 170.5 340.0 413.0
XN1007-20 20 12.5 16.0T 72.0 62.0 26.0 76.5 62.0 192.5 375.0 463.0
XN1007-22 22 17.1 19.0T 97.0 96.0 33.0 80.0 66.0 205.0 473.0 572.0
