Duke Eye Shortening Grab Hook

An Eye Shortening Grab Hook is a specialized hook designed for adjusting chain length in lifting and rigging applications. Its unique narrow throat securely grips the chain without the need for a separate connector, allowing for precise shortening or positioning of the chain during use. The eye-shaped loop at the top ensures easy attachment to slings or lifting equipment.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • EN1677-1 / WLL + 25%, Higher Grade Material
  • Safety Factor 4:1

Description

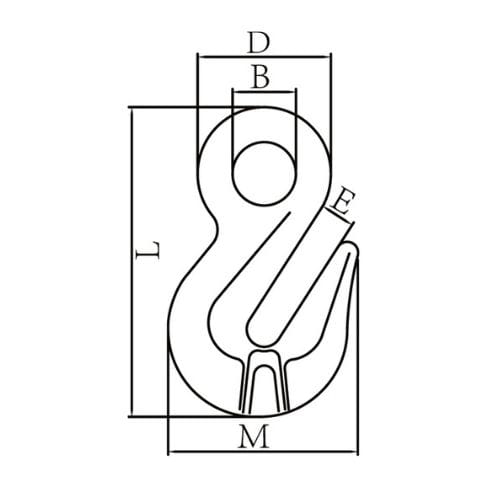

Product Code Size (mm) Weight (kg) WLL (T) E B D M L
XN1008-06 6 0.20 1.4T 8.0 14.5 30.5 43.5 71.0
XN1008-08 8 0.28 2.5T 10.8 18.0 37.0 53.0 91.5
XN1008-10 10 0.72 4.0T 13.5 22.5 48.5 72.0 127.5
XN1008-13 13 1.60 6.7T 16.5 28.0 59.0 96.0 163.0
XN1008-16 16 2.45 10.0T 19.2 36.0 74.0 112.5 183.0
XN1008-20 20 4.72 16.0T 24.0 43.5 89.5 143.0 227.0
XN1008-22 22 8.20 19.0T 27.0 48.5 100.5 160.5 260.5
