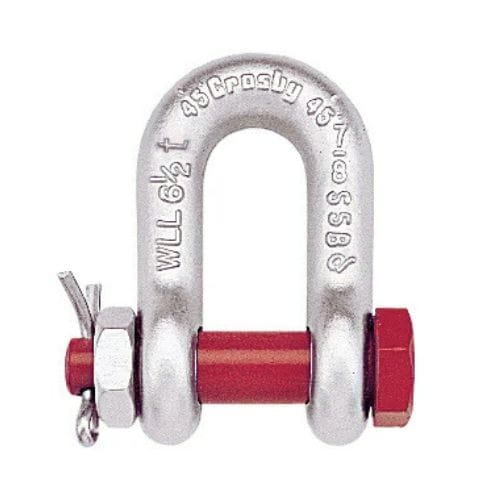

Crosby Safety Pin Dee Shackle

• Working Load Limit and Grade 6 permanently shown on every shackle.
• Forged, Quenched & Tempered, with alloy pins.
• Hot-dip galvanized (G) or self-colored (S). 85 ton shackles have hot-dip galvanized bows and the bolts are Dimetcoted® and painted red.
• Sizes 3/8 inch and below are mechanically galvanized.
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit(1/2t- 55t).
• Approved for use at -40° F (-40° C) to 400° F (204° C).
• Meets or exceeds all requirements of ASME B30.26.
• Sizes 1/2 – 25t meet the performance requirements of EN13889:2003.
• Meets the performance requirements of Federal Specification RR-C
  271H, Type IVB, Grade A, Class 3, except for those provisions required of the contractor.

View Specifications Here
