Duke Clevis Shortening Clutch

The Clevis Shortening Clutch is designed for safely adjusting and shortening chains in lifting and rigging applications. Its clevis design ensures a secure attachment directly to the chain without additional connectors, while the clutch mechanism holds the chain firmly in place, preventing slipping under load.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • All Load Pins are 100% individually inspected and tested
  • EN1677-1
  • Safety Factor 4:1

Description

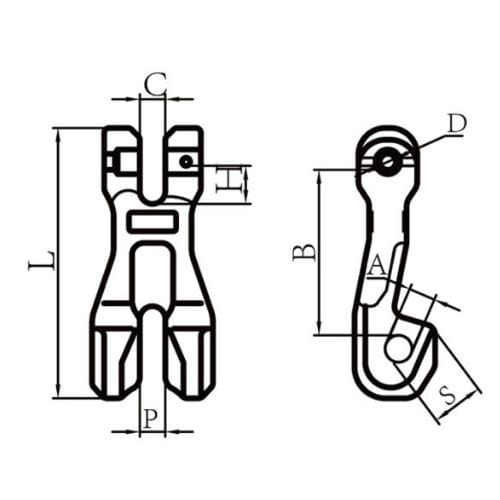

Product Code Size (mm) Weight (kg) WLL (T) P C A B H S L D
XN073-06 6 0.17 1.12T 7.50 7.50 8.00 44.0 10.3 12.0 73.5 7.80
XN073-07/8 7/8 0.37 2.0T 9.50 9.50 10.5 61.7 14.0 17.0 101 9.20
XN073-10 10 0.97 3.15T 13.0 13.0 12.4 92.0 18.4 28.0 138 13.2
XN073-13 13 2.01 5.3T 16.5 16.5 16.0 115 22.7 34.5 177 16.2
XN073-16 16 3.32 8.0T 21.0 21.0 19.5 143 28.5 40.0 220 20.0
XN073-20 18/20 6.20 12.5T 23.5 23.5 23.0 152 33.6 46.0 238 24.3
XN073-22 22 8.50 15.0T 25.5 25.5 26.0 195 39.0 57.5 295 28.1
