The Shortening Clutch is used to adjust the length of chains in lifting applications. The clutch allows for quick and secure shortening, while the pin holds the chain firmly in place, preventing accidental loosening under load. The design ensures a safe and reliable connection.

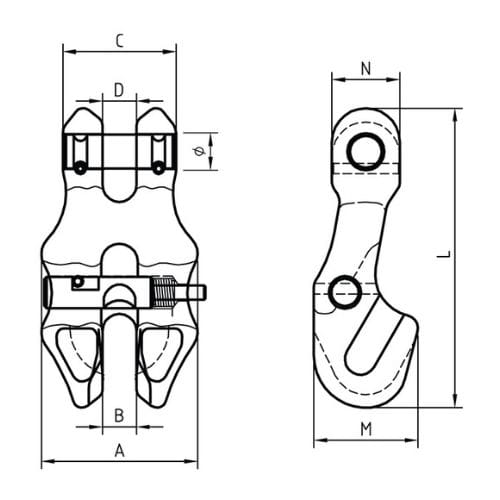

| Product Code | Size (mm) | Weight (kg) | WLL (T) | A | B | C | D | M | N | P | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XN638-07/8 | 7/8 | 0.41 | 2.0T | 50.0 | 9.50 | 33.0 | 9.50 | 33.0 | 23.0 | 9.20 | 92.0 |
| XN638-10 | 10 | 0.75 | 3.15T | 60.0 | 11.5 | 43.0 | 11.5 | 42.2 | 26.0 | 13.3 | 115 |
| XN638-13 | 13 | 1.67 | 5.3T | 79.0 | 15.0 | 55.0 | 15.0 | 54.0 | 34.0 | 16.3 | 149 |
