Duke Eye Self Locking Hook

The Eye Self-Locking Hook is designed for secure attachment and operation in heavy-duty rigging and material handling tasks. It features an eye-shaped loop at the top for easy connection to slings, chains, or lifting equipment. The self-locking mechanism automatically secures the hook when a load is applied, preventing accidental detachment and ensuring maximum safety during lifting operations.

  • Fatigue Rated x 1.5 WLL for 20,000 cycles
  • Proof Tested – 2.5 times Working Load Limit
  • 100% Magnaflux Crack Detected
  • Super Alloy Steel
  • EN1677-3
  • Safety Factor 4:1

Description

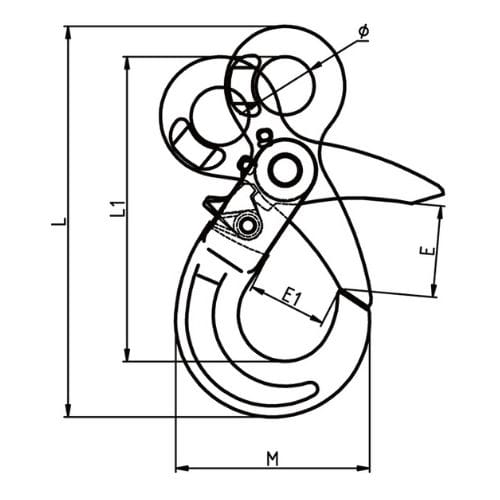

Product Code Size (mm) Weight (kg) WLL (T) Ø E E1 L1 L M
XN737-06 6 0.50 1.12T 21.0 30.0 28.0 110 141 70.5
XN737-07/8 07/8 0.88 2.0T 25.0 30.4 35.0 136 175 88.0
XN737-10 10 1.58 3.15T 34.5 48.0 45.0 168 214 108
XN737-13 13 3.00 5.3T 40.0 54.0 52.5 207 268 136
XN737-16 16 5.90 8.0T 50.0 47.0 63.3 254 332 168.6
XN737-20 18/20 7.00 12.5T 64.5 54.0 86.0 274.5 332 186.2
XN737-22 22 12.3 15.0T 70.0 59.4 76.0 319 415 202
XN737-26 26 20.0 21.2T 80.0 101 96.0 362 472 244
XN737-32 32 43.0 31.5T 105 101 133 470 614 329.5
