Description

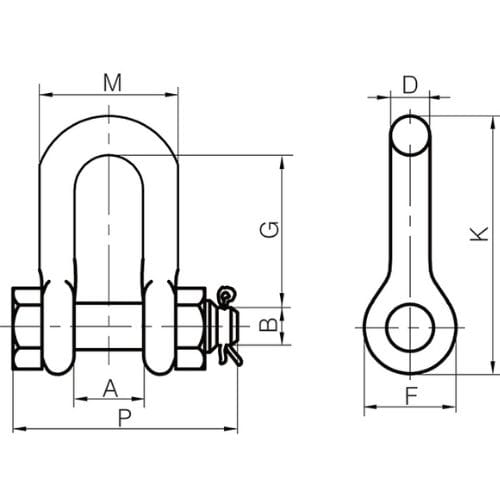

| Part Code | Weight (kg) Each | WLL (T) | A (inch) | B (inch) | D (inch) | F (inch) | G (inch) | K (inch) | M (inch) | P (inch) |
|---|---|---|---|---|---|---|---|---|---|---|
| SHA/FSSD/0.33 | 0.03 | 0.33T | 0.38 | 0.25 | 3/16 | 0.56 | 0.72 | 1.22 | 0.79 | 1.20 |
| SHA/FSSD/0.5 | 0.05 | 0.5T | 0.47 | 0.31 | 1/4 | 0.62 | 0.97 | 1.59 | 0.97 | 1.56 |
| SHA/FSSD/0.75 | 0.09 | 0.75T | 0.53 | 0.38 | 5/16 | 0.75 | 1.07 | 1.91 | 1.15 | 1.82 |
| SHA/FSSD/1 | 0.14 | 1.0T | 0.66 | 0.44 | 3/8 | 0.92 | 1.28 | 2.31 | 1.42 | 2.17 |
| SHA/FSSD/1.5 | 0.22 | 1.5T | 0.75 | 0.50 | 7/16 | 1.06 | 1.48 | 2.67 | 1.63 | 2.52 |
| SHA/FSSD/2 | 0.33 | 2.0T | 0.81 | 0.64 | 1/2 | 1.18 | 1.66 | 3.03 | 1.81 | 2.80 |
| SHA/FSSD/3.25 | 0.64 | 3.25T | 1.06 | 0.77 | 5/8 | 1.50 | 2.04 | 3.76 | 2.32 | 3.56 |
| SHA/FSSD/4.75 | 1.02 | 4.75T | 1.25 | 0.89 | 3/4 | 1.81 | 2.40 | 4.53 | 2.75 | 4.15 |
| SHA/FSSD/6.5 | 1.64 | 6.5T | 1.44 | 1.02 | 7/8 | 2.10 | 2.86 | 5.33 | 3.20 | 4.82 |
| SHA/FSSD/8.5 | 2.38 | 8.5T | 1.69 | 1.15 | 1 | 2.38 | 3.24 | 5.94 | 3.69 | 5.39 |
| SHA/FSSD/9.5 | 3.34 | 9.5T | 1.81 | 1.25 | 1-1/8 | 2.69 | 3.61 | 6.78 | 4.07 | 5.90 |
| SHA/FSSD/12 | 4.50 | 12.0T | 2.03 | 1.40 | 1-1/4 | 3.00 | 3.97 | 7.50 | 4.53 | 6.69 |
| SHA/FSSD/13.5 | 6.60 | 13.5T | 2.25 | 1.53 | 1-3/8 | 3.31 | 4.43 | 8.28 | 5.01 | 7.21 |
| SHA/FSSD/17 | 7.80 | 17.0T | 2.38 | 1.66 | 1-1/2 | 3.62 | 4.87 | 9.05 | 5.38 | 7.73 |
| SHA/FSSD/25 | 13.00 | 25.0T | 2.88 | 2.04 | 1-3/4 | 4.19 | 5.82 | 10.97 | 6.38 | 9.33 |
| SHA/FSSD/35 | 21.20 | 35.0T | 3.25 | 2.30 | 2 | 5.00 | 6.82 | 12.74 | 7.25 | 10.41 |
| SHA/FSSD/55 | 38.50 | 55.0T | 4.13 | 2.80 | 2-1/2 | 5.68 | 8.07 | 14.85 | 9.38 | 13.58 |
| SHA/FSSD/85 | 56.00 | 50.0T | 5.00 | 3.25 | 3 | 6.50 | 8.56 | 16.87 | 11.00 | 15.13 |
