Zinc Plated Screwgate Carbine Hook

A screwgate carbine hook (or screwgate snap hook) is a secure, spring-loaded fastening device with an added screw-locking mechanism for enhanced safety. It is commonly used in rigging, industrial applications, outdoor activities, and connections where accidental opening must be prevented.

Available with or without eyelet
Unrated – not for lifting
Galvanised

Enquire about Zinc Plated Screwgate Carbine Hook

Description

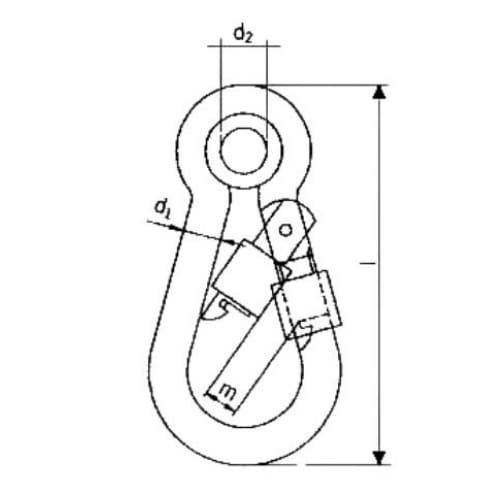

Product Code	Size (mm)	Weight (kg each)	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)
CHGSG/5x50	5x50	0.021	5	25	50	5	7
CHGSG/6x60	6x60	0.032	6	30	60	5	8
CHGSG/7x70	7x70	0.050	7	35	70	7	8
CHGSG/8x80	8x80	0.077	8	40	80	10	9
CHGSG/9x90	9x90	0.099	9	45	90	10	10
CHGSG/10x100	10x100	0.162	10	50	100	13	11
CHGSG/11x120	11x120	0.220	11	57	120	13	16
CHGSG/12x140	12x140	0.285	12	67	140	15	19
CHGSG/13X160	13x160	0.420	13	74	160	17	25
