Delta Maillon Rapide – Zinc Plated

A Maillon Rapide (Quick Link) is a strong, screw-locking connector used in rigging, climbing, lifting, and safety applications. It provides a secure, semi-permanent connection for chains and ropes, load-rated and widely used in climbing, marine, industrial, and theatre rigging.

  • Machinery Directive 2006/42/EC
  • Maillon Rapide quick links are CE-engraved according to the 2006/42/EC Machinery Directive, as lifting accessories.
  • The evaluation of the conformity with internal control of the manufacture is carried out with CE-marking self-certification.
  • A safety factor of 5 is set against the breaking load. WLL = breaking load /5
  • The working load limit shall never be exceeded.
  • Zinc Plated Galvanised Steel.
  • NOT for use as PPE.

Description

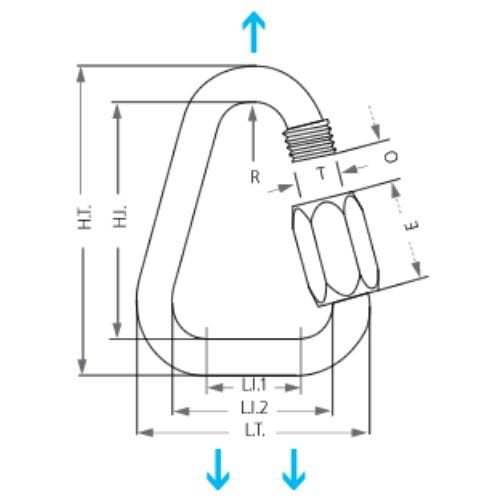

Product Code Diameter (mm) Weight (g each) L.T (mm) L.I.1 (mm) L.I.2 (mm) H.T (mm) H.I (mm) O (mm) E (mm) R (mm) T (mm) Working Load Limit (kgs) Breaking Load (kgs)
MRD/3 3 6 27.0 12.5 21.0 30.0 24.0 4.0 9.0 4.25 4 40 200
MRD/4 4 14 35.5 16.0 27.5 40.0 32.0 5.5 12.5 5.75 6 100 500
MRD/5 5 23 40.0 17.0 30.0 48.0 38.0 6.5 16.0 6.50 7 150 750
MRD/6 6 39 47.0 20.5 35.0 56.0 44.0 7.5 19.0 7.25 9 250 1250
MRD/7 7 58 51.0 21.0 37.0 63.0 49.0 8.5 21.5 8.0 10 400 2000
MRD/8 8 88 56.0 22.5 40.0 73.0 57.0 10.0 24.0 8.85 11 550 2750
MRD/9 9 115 60.0 23.0 42.0 78.0 60.0 11.0 26.0 9.50 12 700 3500
MRD/10 10 153 66.0 25.5 46.0 87.0 67.0 12.0 29.0 10.25 13 900 4500
MRD/12 12 256 75.0 27.5 51.0 104 80.0 15.0 33.0 11.75 15 1100 5500
MRD/14 14 404 85.0 30.5 57.0 123 95.0 17.0 38.5 13.25 17 1800 9000
MRD/16 16 612 93.0 31.5 61.0 138 106 19.0 45.0 14.75 19 2200 11000
MRD/18 18 845 102.0 32.5 66.0 155 119 23.0 52.0 16.25 22 2600 13000
MRD/20 20 1185 112.0 31.5 72.0 176 136 24.0 60.0 17.75 24 3000 15000
