Black Carbine Hook

A carbine snap hook is a quick-release, spring-loaded fastening device used for secure and easy attachment in various applications, including rigging, outdoor activities, and industrial use.

Available with or without eyelet
Unrated – not for lifting
Black Finish

Enquire about Black Carbine Hook

Description

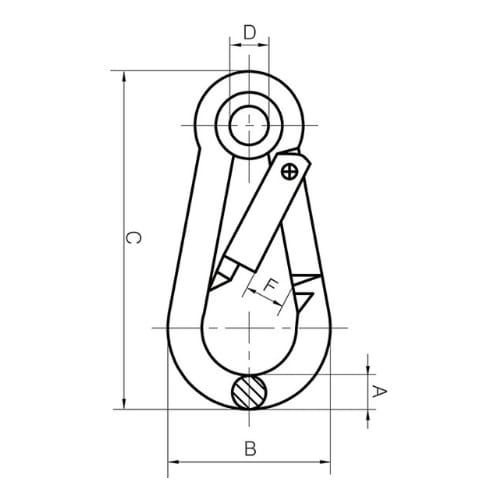

Product Code	Size (mm)	Weight (kg each)	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)
CHG/4x40	4x40	0.009	4	20	40	5	7
CHG/5x50	5x50	0.02	5	25	50	5	7
CHG/6x60	6x60	0.03	6	30	60	5	8
CHG/7x70	7x70	0.05	7	35	70	7	8
CHG/8x80	8x80	0.075	8	40	80	10	9
CHG/9x90	9x90	0.098	9	45	90	10	10
CHG/10x100	10x100	0.135	10	50	100	13	11
CHG/11x120	11x120	0.210	11	57	120	13	16
CHG/12x140	12x140	0.275	12	67	140	15	19
CHG/13x160	13x160	0.400	13	74	160	17	25
CHG/14x180	14x180	0.485	14	86	180	17	35
